Softwares
|
|
OXALIS-LASER develops and commercializes softwares for optical
system simulation. Using OXALIS-LASER softwares you will be able
to optimize:
-
The Gaussian beam propagation along optical systems
& inside laser cavities,
-
The 3D propagation of any kind of coherent beams
through complex optical systems (intra & extra
cavity) taking into account the beam diffraction, aberration, astigmatism, non-linear & absorption
effects, frequency conversion, group velocity
dispersion and shift, ....
-
The energy deposition into amplifier using laser
diode pumped system.
|
|

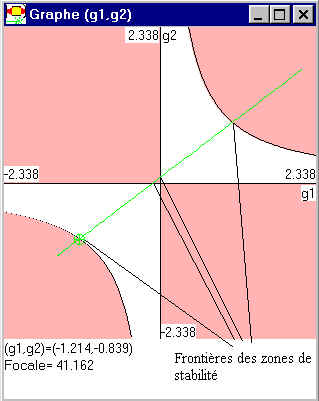

 SimCa
|
|
|
- Gaussian beam propagation along optical systems
& inside laser cavities
|
|
|
|
Commod Pro
|
|
|
- 3D coherent beam propagation, non linear effects (Kerr effect, frequency conversion...), short pulse propagation,
cavities with diffraction (CW, active and passive Q-switched lasers), zig-zag slab amplifiers, MOPA, regenerative amplifier, longitudinal laser pumping ....
|
|
|
|
Thermopt
|
|
|
- Thermopt calculates the wavefront distorsion and polarization changes of a beam propagating through heated active medium; this software is linked to I-DEAS, a software from SDRC (I-DEAS generates the temperature, strain and stress distribution of the active medium).Thermopt also creates phase and birefringence masks files. This masks files can be read and used in our software, Commod Pro, to take into account thermal
lensing and depolarisation
induiced effects.
|
|
|
|

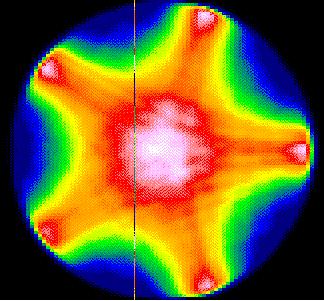

SPIR
|
|
|
- Laser pumping system, transverse diode pumping scheme. Non sequential Ray
tracing (Monte Carlo based method). The calculated and generated gain files can be read and used in our software, Commod Pro, to take into account the real gain distribution.
|
|
|
|
|
